Delta wingspan rotating screen

Matrix rotating screen

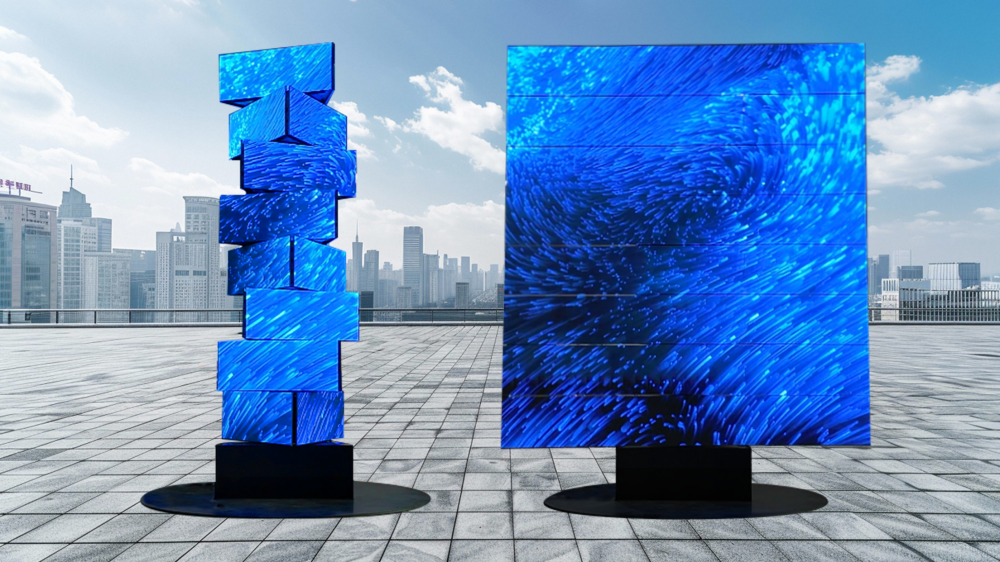

The first intelligent dynamic screen series products in China, composed of multiple rotating units stacked together to form an integral display carrier. The display carrier composed of multiple displa...

Download Catalog

Features

Modular design/Display carrier is not limited

It adopts a modular design, with each module composed of multiple sliding display units. It is easy to install and maintain. The entire module can be disassembled and replaced, or individual units can be disassembled and replaced. The display carrier is not limited and can be creatively combined with different display carriers such as LED screens, LCD splicing screens, LCD monitors, projectors, etc.

Visual programming

It can realize visual scripts, automatically generate pre-determined script actions based on the film, and the script editing is simple and convenient with zero learning threshold.

Multiple anti-collision/Low noise

Multiple anti-collision safety protections are adopted to enhance the operational stability of the equipment and ensure the safety of the display screen. We have independently developed a low-noise and highly stable transmission system, which effectively reduces the noise generated during transmission, while enhancing stability and operational accuracy.

Custom acceleration and deceleration

Supports custom acceleration and deceleration, as well as acceleration and deceleration time, reducing the impact on the device itself while making the movement more gentle.

Specification

P2.5

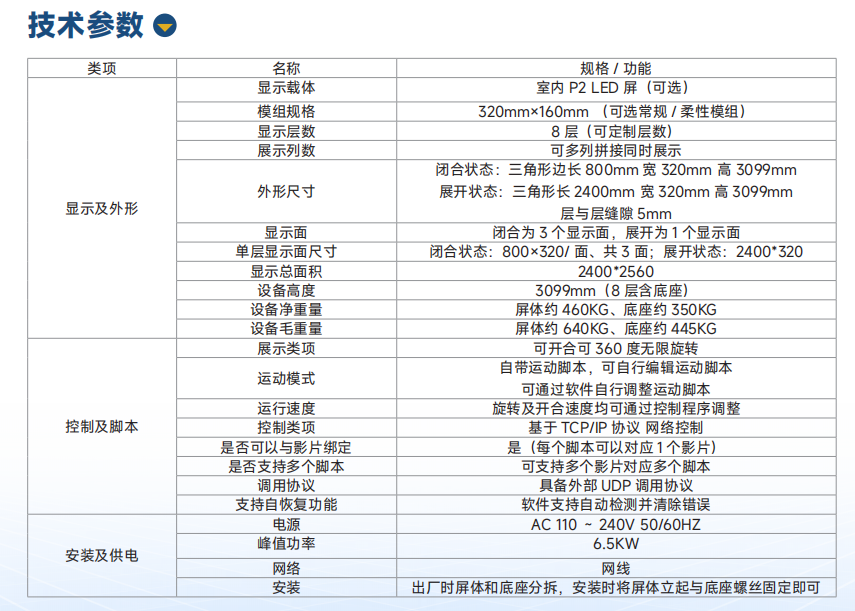

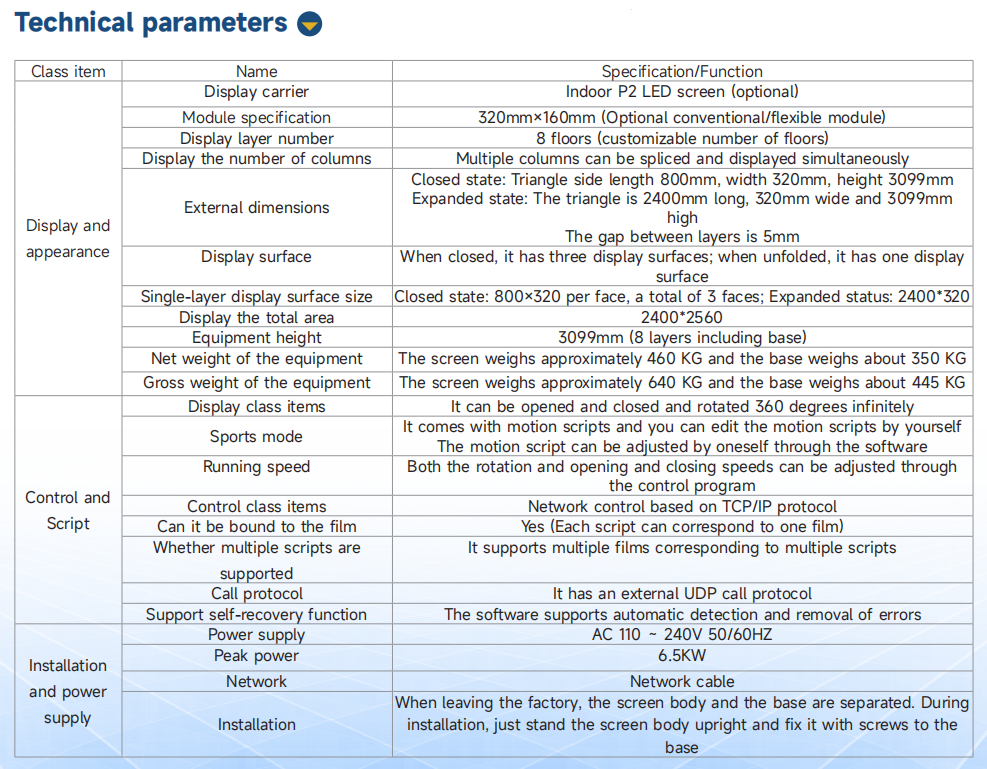

技术参数表 | Technical Specifications Sheet

类项Category名称Name规格 / 功能Specifications / Features
显示及外形Display & Exterior​显示载体Display Carrier室内P2 LED屏(可选)Indoor P2 LED Screen (Optional)
模组规格Module Specifications320mm × 160mm(可选常规/柔性模组)320mm × 160mm (Optional regular/flexible modules)
显示层数Display Layers8层(可定制层数)8 Layers (Customizable)
展示列数Display Columns可多列拼接同时展示Supports multi-column splicing for simultaneous display
外形尺寸Dimensions (LWH)闭合状态:三角形边长800mm 宽320mm 高3099mmClosed State: Triangle side 800mm, Width 320mm, Height 3099mm展开状态:长2400mm 宽320mm 高3099mmExpanded State: Length 2400mm, Width 320mm, Height 3099mm层与层缝隙 5mmGap between layers: 5mm
显示面Display Surface闭合为3个显示面,展开为1个显示面Closed: 3 display surfaces. Expanded: 1 display surface.
单层显示面尺寸Single Layer Display Area闭合状态:800×320/面、共3面Closed State: 800×320 per surface, 3 surfaces total.展开状态:2400×320Expanded State: 2400×320
显示总面积Total Display Area2400 × 2560
设备高度Device Height3099mm (8层含底座)3099mm (8 layers including base)
设备净重Device Net Weight屏体约460KG、底座约350KGScreen: ~460KG, Base: ~350KG
设备毛重Device Gross Weight屏体约640KG、底座约445KGScreen: ~640KG, Base: ~445KG
控制及脚本Control & Script​展示类项Display Category可开合可360度无限旋转Openable/Closable & 360° Infinite Rotation
运动模式Motion Mode自带运动脚本,可自行编辑Built-in motion scripts, user-editable.可通过软件自行调整运动脚本Motion scripts adjustable via software.
运行速度Operating Speed旋转及开合速度均可通过控制程序调整Rotation and opening/closing speeds adjustable via control program.
控制类项Control Category基于TCP/IP协议网络控制Network control based on TCP/IP protocol
是否可以与影片绑定Video Binding Support是(每个脚本可以对应1个影片)Yes (Each script can correspond to 1 video)
是否支持多个脚本Multiple Scripts Support可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts
调用协议Calling Protocol具备外部UDP调用协议Equipped with external UDP calling protocol
支持自恢复功能Self-Recovery Function软件支持自动检测并清除错误Software supports automatic error detection and clearing
安装及供电Installation & Power Supply​电源Power SupplyAC 110 ~ 240V 50/60HZAC 110 ~ 240V 50/60HZ
峰值功率Peak Power6.5KW
网络Network网线Ethernet Cable
安装Installation出厂时屏体和底座分拆,安装时将屏体立起与底座螺丝固定即可。Screen and base are shipped disassembled. Installation involves erecting the screen body and fixing it to the base with screws.
