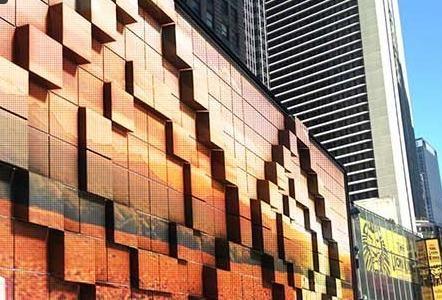

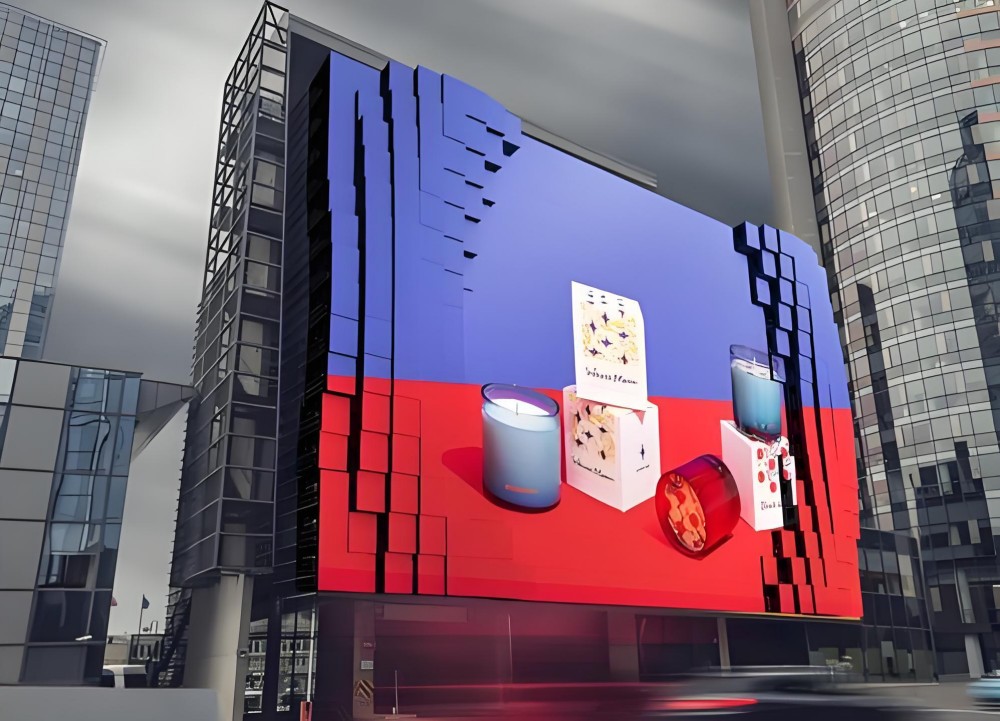

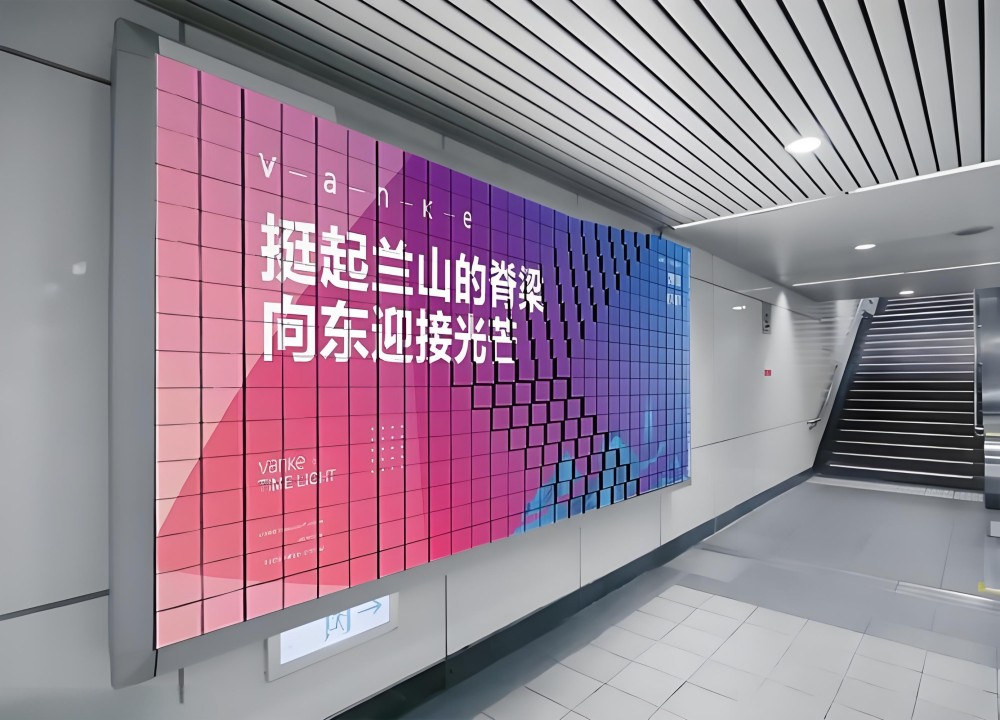

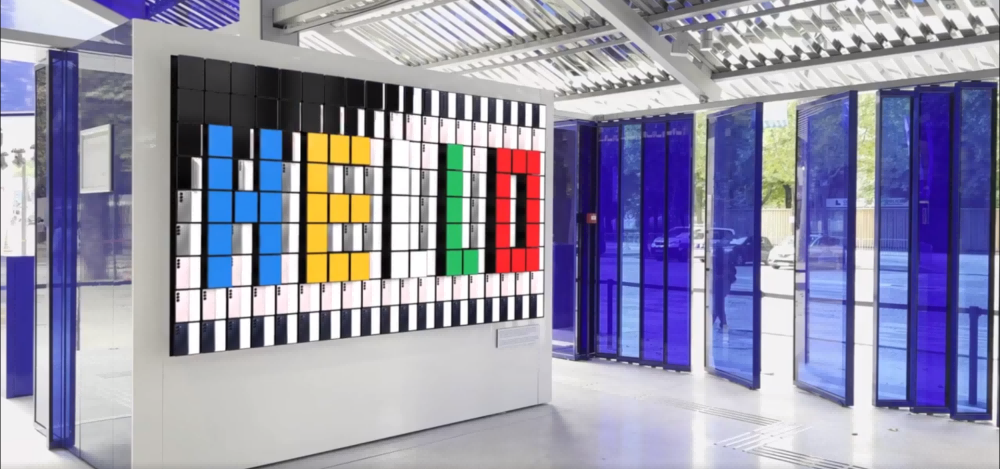

The first domestic smart dynamic screen series product - the retractable matrix screen, is composed of multiple units stacked and combined to form an integrated display carrier.
Modular design, each module is composed of 6 units, easy installation, simple maintenance, can be removed and replaced by the whole module, can also be removed and replaced by a single unit.

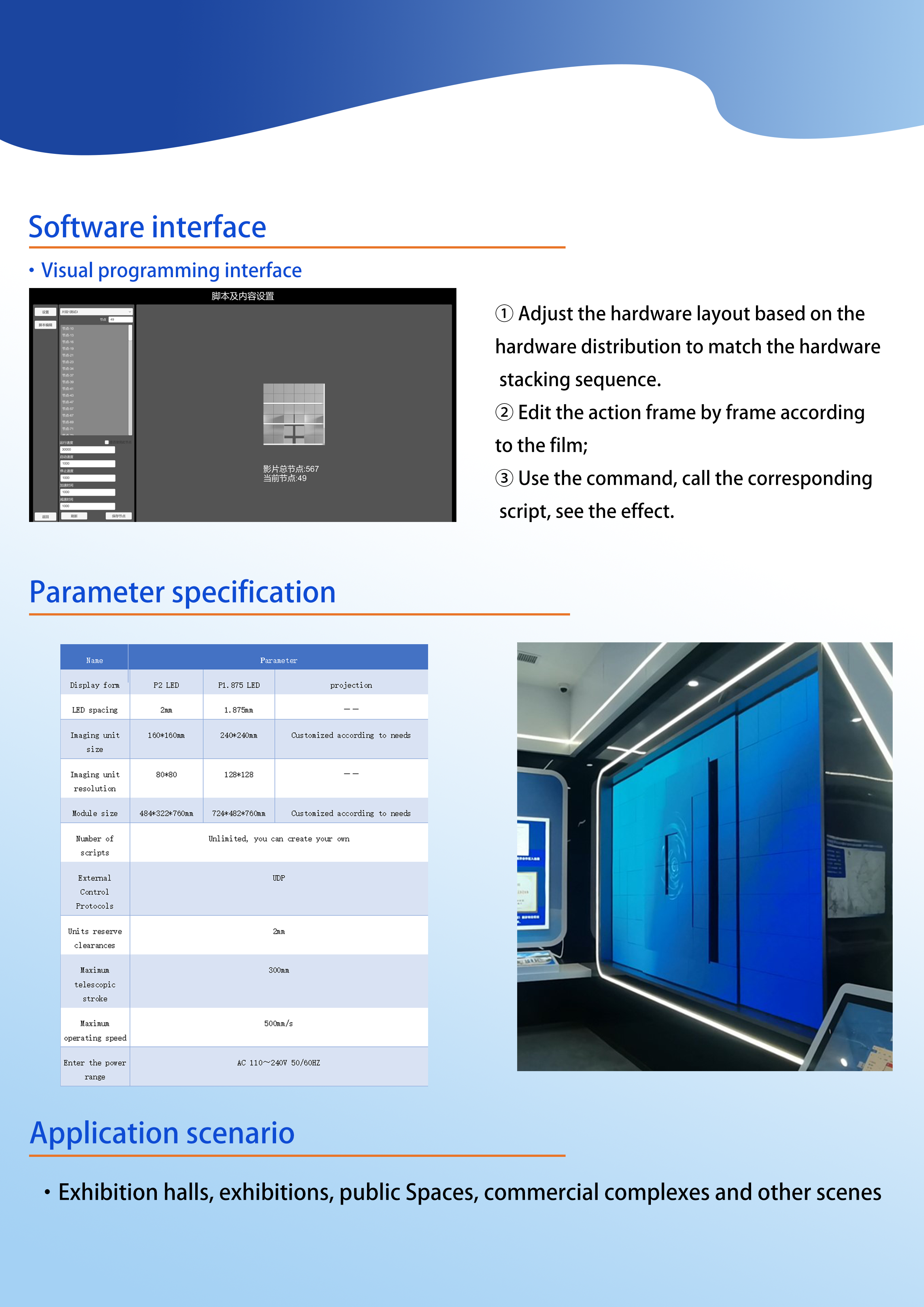

Visual scripts can be realized, and predetermined scripts can be automatically generated according to the movie. Script editing is simple and convenient, and zero learning threshold;
Combined with the LED display, it also has the characteristics of high resolution, high brightness and high contrast of LED, making the picture more gorgeous and clear.
Using the domestic well-known brand closed-loop DC stepper motor and synchronous belt transmission mode, effectively reduce the noise generated by the transmission, while improving the stability and action accuracy. Support self-determined acceleration and deceleration, acceleration and deceleration time, reduce the impact on the device itself, while making the movement softer.

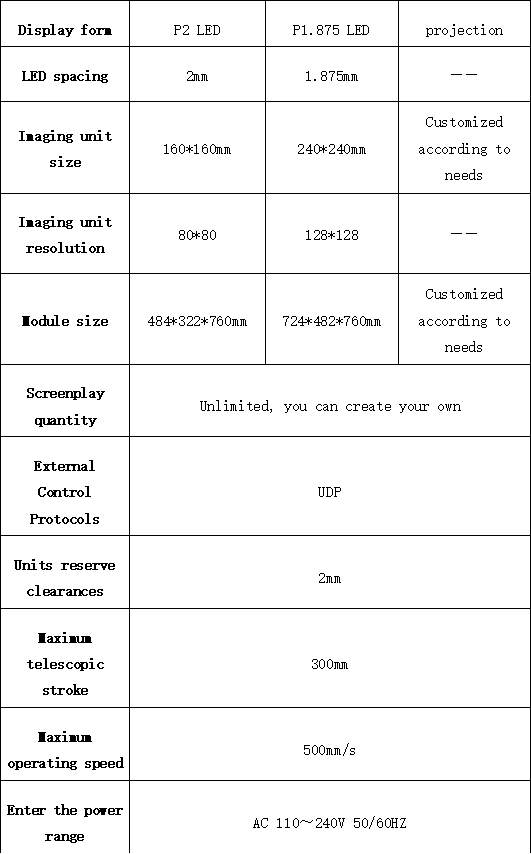

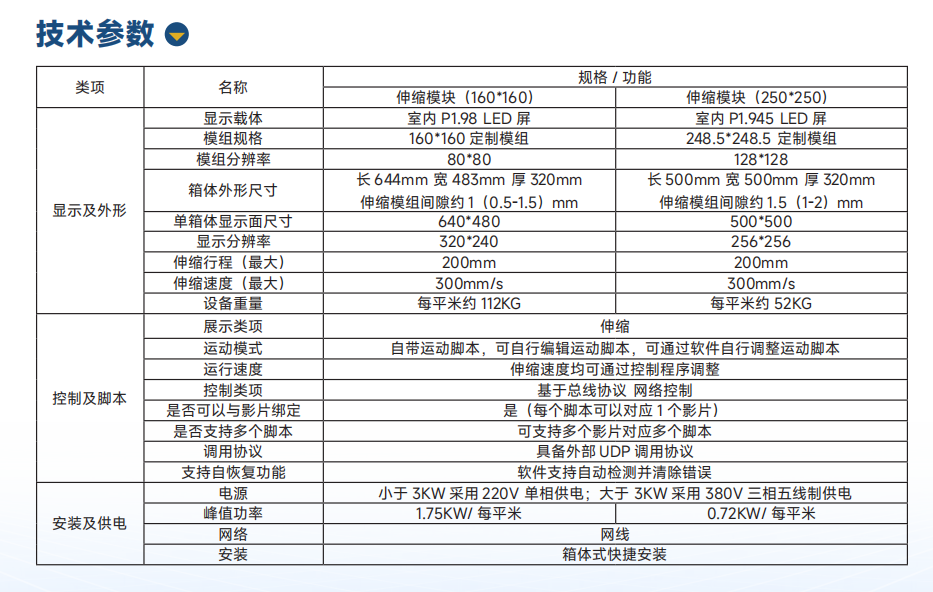

技术参数表 | Technical Specifications Sheet
| 类项Category | 名称Name | 伸缩模块 (160*160)Telescopic Module (160*160) | 伸缩模块 (250*250)Telescopic Module (250*250) | 伸缩模块 (320*160)Telescopic Module (320*160) |
|---|---|---|---|---|
| 显示及外形Display & Exterior | 显示载体Display Carrier | 室内 P1.98 LED 屏Indoor P1.98 LED Screen | 室内 P1.945 LED 屏Indoor P1.945 LED Screen | 室内 P2 LED 屏Indoor P2 LED Screen |
| 模组规格Module Specifications | 160*160 定制模组160*160 Custom Module | 248.5*248.5 定制模组248.5*248.5 Custom Module | 320*160 常规模组320*160 Standard Module | |
| 模组分辨率Module Resolution | 80*80 | 128*128 | 160*80 | |
| 箱体外形尺寸Cabinet Dimensions | 长 644mm 宽 483mm 厚 320mmL 644mm, W 483mm, D 320mm | 长 500mm 宽 500mm 厚 320mmL 500mm, W 500mm, D 320mm | 长 644mm 宽 483mm 厚 320mmL 644mm, W 483mm, D 320mm | |
| 单箱体显示面尺寸Single Cabinet Display Area | 640*480 | 500*500 | 640*480 | |
| 显示分辨率Display Resolution | 320*240 | 256*256 | 320*240 | |
| 伸缩行程 (最大)Telescopic Stroke (Max) | 200mm | 200mm | 200mm | |
| 伸缩速度 (最大)Telescopic Speed (Max) | 300mm/s | 300mm/s | 300mm/s | |
| 设备重量Equipment Weight | 每平米约 112KG~112KG/m² | 每平米约 52KG~52KG/m² | 每平米约 112KG~112KG/m² | |
| 控制及脚本Control & Script | 展示类项Display Category | 伸缩Telescopic | 伸缩Telescopic | 伸缩Telescopic |
| 运动模式Motion Mode | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Adjustable via software. | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Adjustable via software. | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Adjustable via software. | |
| 运行速度Operating Speed | 伸缩速度均可通过控制程序调整Telescopic speed adjustable via control program. | 伸缩速度均可通过控制程序调整Telescopic speed adjustable via control program. | 伸缩速度均可通过控制程序调整Telescopic speed adjustable via control program. | |
| 控制类项Control Category | 基于总线协议网络控制Network control based on bus protocol. | 基于总线协议网络控制Network control based on bus protocol. | 基于总线协议网络控制Network control based on bus protocol. | |
| 影片绑定支持Video Binding Support | 是 (每个脚本可以对应 1 个影片)Yes (Each script can correspond to 1 video) | 是 (每个脚本可以对应 1 个影片)Yes (Each script can correspond to 1 video) | 是 (每个脚本可以对应 1 个影片)Yes (Each script can correspond to 1 video) | |
| 多脚本支持Multiple Scripts Support | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts. | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts. | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts. | |
| 调用协议Calling Protocol | 具备外部 UDP 调用协议Equipped with external UDP calling protocol. | 具备外部 UDP 调用协议Equipped with external UDP calling protocol. | 具备外部 UDP 调用协议Equipped with external UDP calling protocol. | |
| 自恢复功能Self-Recovery Function | 软件支持自动检测并清除错误Software supports automatic error detection and clearing. | 软件支持自动检测并清除错误Software supports automatic error detection and clearing. | 软件支持自动检测并清除错误Software supports automatic error detection and clearing. | |
| 安装及供电Installation & Power Supply | 电源Power Supply | <3KW: 220V 单相供电>3KW: 380V 三相五线制供电<3KW: 220V Single-phase>3KW: 380V Three-phase five-wire | <3KW: 220V 单相供电>3KW: 380V 三相五线制供电<3KW: 220V Single-phase>3KW: 380V Three-phase five-wire | <3KW: 220V 单相供电>3KW: 380V 三相五线制供电<3KW: 220V Single-phase>3KW: 380V Three-phase five-wire |
| 峰值功率Peak Power | 1.75KW/每平米1.75KW/m² | 0.72KW/每平米0.72KW/m² | 1.75KW/每平米1.75KW/m² | |
| 网络Network | 网线Ethernet Cable | 网线Ethernet Cable | 网线Ethernet Cable | |
| 安装Installation | 箱体式快捷安装Cabinet-type quick installation. | 箱体式快捷安装Cabinet-type quick installation. | 箱体式快捷安装Cabinet-type quick installation. |
