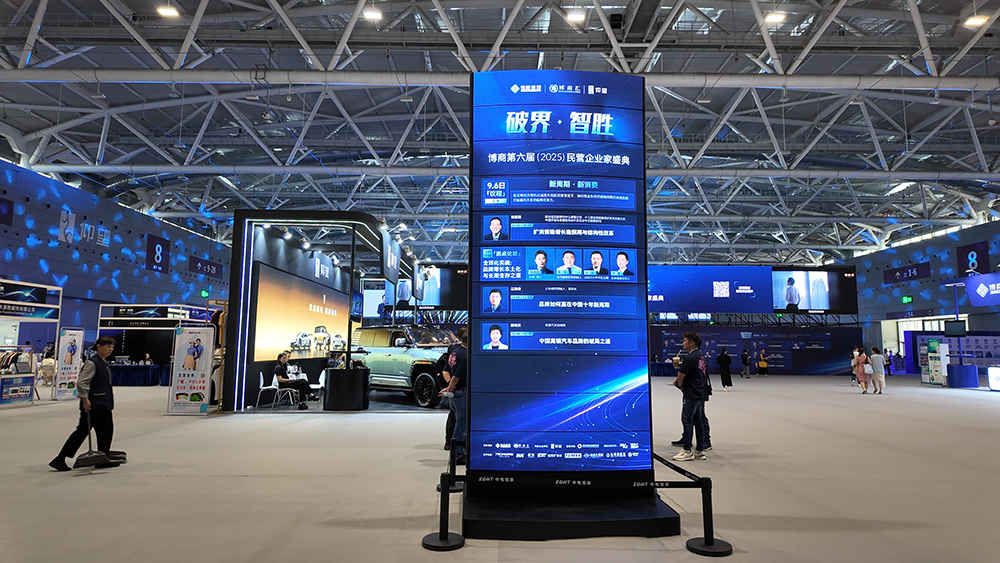

The first domestic intelligent dynamic screen series products, composed of multiple rotating units stacked together to form an integral display carrier, and a display carrier composed of multiple display carriers.
The modular design, with each module consisting of multiple sliding display units, allows for easy installation and maintenance. The entire module can be disassembled and replaced, as well as individual units. The display supports a wide range of media, allowing for creative integration with various display platforms, including LED screens, LCD splicing screens, LCD monitors, and projectors.
It can realize visual scripting and automatically generate predetermined scripts based on the movie. Action script editing is simple and convenient, with zero learning threshold;
Multiple anti-collision safety features enhance operational stability and ensure display screen safety. The proprietary low-noise, highly stable transmission system effectively reduces transmission noise while improving stability and accuracy.
Available in various sizes and configurations, as well as lightweight and heavy-duty constructions. Customizable acceleration and deceleration rates and times are supported, reducing impact on the device and ensuring smoother movement.
弧形旋转屏技术参数表

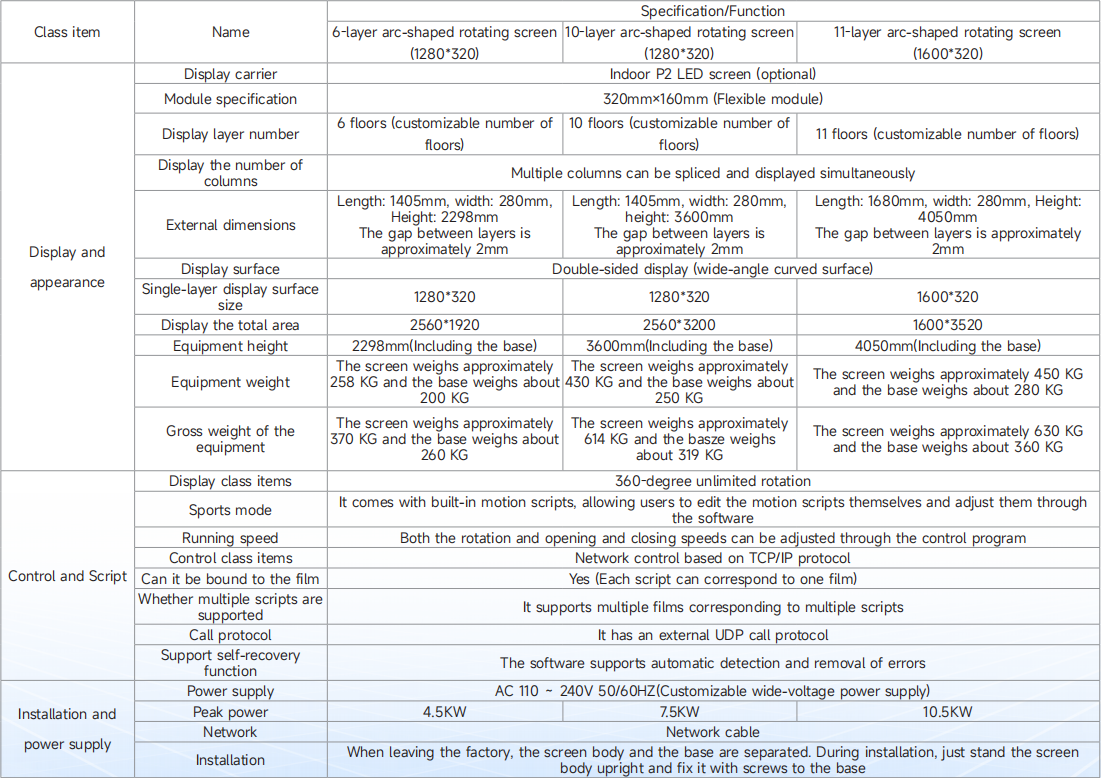

Arc-shaped Rotating Screen Technical Specifications
| 类项Category | 名称Name | 6层弧形旋转屏 (1280 * 320)6-Layer Arc Screen (1280 * 320) | 10层弧形旋转屏 (1280 * 320)10-Layer Arc Screen (1280 * 320) | 11层弧形旋转屏 (1600 * 320)11-Layer Arc Screen (1600 * 320) |
|---|---|---|---|---|
| 显示及外形Display & Exterior | 显示载体Display Carrier | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) |
| 模组规格Module Specifications | 320mm×160mm（柔性模组）320mm×160mm (Flexible Module) | 320mm×160mm（柔性模组）320mm×160mm (Flexible Module) | 320mm×160mm（柔性模组）320mm×160mm (Flexible Module) | |
| 显示层数Display Layers | 6层（可定制层数）6 Layers (Customizable) | 10层（可定制层数）10 Layers (Customizable) | 11层（可定制层数）11 Layers (Customizable) | |
| 展示列数Display Columns | 可多列拼接同时展示Supports multi-column splicing for simultaneous display | 可多列拼接同时展示Supports multi-column splicing for simultaneous display | 可多列拼接同时展示Supports multi-column splicing for simultaneous display | |
| 外形尺寸Dimensions (LWH) | 长1405mm 宽280mm 高2298mmL 1405mm, W 280mm, H 2298mm | 长1405mm 宽280mm 高3600mmL 1405mm, W 280mm, H 3600mm | 长1680mm 宽280mm 高4050mmL 1680mm, W 280mm, H 4050mm | |
| 层与层缝隙Gap Between Layers | 约2mm~2mm | 约2mm~2mm | 约2mm~2mm | |
| 显示面Display Surface | 双面显示（广角曲面）Double-sided Display (Wide-angle Curved Surface) | 双面显示（广角曲面）Double-sided Display (Wide-angle Curved Surface) | 双面显示（广角曲面）Double-sided Display (Wide-angle Curved Surface) | |
| 单层显示面尺寸Single Layer Display Area | 1280 * 320 | 1280 * 320 | 1600 * 320 | |
| 显示总面积Total Display Area | 2560 * 1920 | 2560 * 3200 | 3200 * 3520 | |
| 设备高度（含底座）Device Height (with base) | 2298mm | 3600mm | 4050mm | |
| 设备净重Net Weight | 屏体约258KG、底座约200KGScreen: ~258KG, Base: ~200KG | 屏体约430KG、底座约250KGScreen: ~430KG, Base: ~250KG | 屏体约450KG、底座约280KGScreen: ~450KG, Base: ~280KG | |
| 设备毛重Gross Weight | 屏体约370KG、底座约260KGScreen: ~370KG, Base: ~260KG | 屏体约614KG、底座约319KGScreen: ~614KG, Base: ~319KG | 屏体约630KG、底座约360KGScreen: ~630KG, Base: ~360KG | |
| 控制及脚本Control & Script | 展示类项Display Category | 360度无限旋转360° Infinite Rotation | 360度无限旋转360° Infinite Rotation | 360度无限旋转360° Infinite Rotation |
| 运动模式Motion Mode | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Adjustable via software. | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Adjustable via software. | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Adjustable via software. | |
| 运行速度Operating Speed | 旋转及开合速度均可通过控制程序调整Rotation and opening/closing speeds adjustable via control program. | 旋转及开合速度均可通过控制程序调整Rotation and opening/closing speeds adjustable via control program. | 旋转及开合速度均可通过控制程序调整Rotation and opening/closing speeds adjustable via control program. | |
| 控制类项Control Category | 基于TCP/IP协议网络控制Network control based on TCP/IP protocol | 基于TCP/IP协议网络控制Network control based on TCP/IP protocol | 基于TCP/IP协议网络控制Network control based on TCP/IP protocol | |
| 是否可以与影片绑定Video Binding Support | 是（每个脚本可以对应1个影片）Yes (Each script can correspond to 1 video) | 是（每个脚本可以对应1个影片）Yes (Each script can correspond to 1 video) | 是（每个脚本可以对应1个影片）Yes (Each script can correspond to 1 video) | |
| 是否支持多个脚本Multiple Scripts Support | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts | |
| 调用协议Calling Protocol | 具备外部UDP调用协议Equipped with external UDP calling protocol | 具备外部UDP调用协议Equipped with external UDP calling protocol | 具备外部UDP调用协议Equipped with external UDP calling protocol | |
| 支持自恢复功能Self-Recovery Function | 软件支持自动检测并清除错误Software supports automatic error detection and clearing | 软件支持自动检测并清除错误Software supports automatic error detection and clearing | 软件支持自动检测并清除错误Software supports automatic error detection and clearing | |
| 安装及供电Installation & Power Supply | 电源Power Supply | AC 110 ~ 240V 50/60HZ（可定制宽压电源）AC 110 ~ 240V 50/60HZ (Wide voltage power supply customizable) | AC 110 ~ 240V 50/60HZ（可定制宽压电源）AC 110 ~ 240V 50/60HZ (Wide voltage power supply customizable) | AC 110 ~ 240V 50/60HZ（可定制宽压电源）AC 110 ~ 240V 50/60HZ (Wide voltage power supply customizable) |
| 峰值功率Peak Power | 4.5KW | 7.5KW | 10.5KW | |
| 网络Network | 网线Ethernet Cable | 网线Ethernet Cable | 网线Ethernet Cable | |
| 安装Installation | 出厂时屏体和底座分拆，安装时将屏体立起与底座螺丝固定即可Screen and base shipped disassembled. Install by erecting screen and fixing to base with screws. | 出厂时屏体和底座分拆，安装时将屏体立起与底座螺丝固定即可Screen and base shipped disassembled. Install by erecting screen and fixing to base with screws. | 出厂时屏体和底座分拆，安装时将屏体立起与底座螺丝固定即可Screen and base shipped disassembled. Install by erecting screen and fixing to base with screws. |
