The first domestic intelligent dynamic screen series products, composed of multiple rotating units stacked together to form an integral display carrier, and a display carrier composed of multiple display carriers.
The modular design, with each module consisting of multiple sliding display units, allows for easy installation and maintenance. The entire module can be disassembled and replaced, as well as individual units. The display supports a wide range of media, allowing for creative integration with various display platforms, including LED screens, LCD splicing screens, LCD monitors, and projectors.
It can realize visual scripting and automatically generate predetermined scripts based on the movie. Action script editing is simple and convenient, with zero learning threshold;
Multiple anti-collision safety features enhance operational stability and ensure display screen safety. The proprietary low-noise, highly stable transmission system effectively reduces transmission noise while improving stability and accuracy.
Available in various sizes and configurations, as well as lightweight and heavy-duty constructions. Customizable acceleration and deceleration rates and times are supported, reducing impact on the device and ensuring smoother movement.

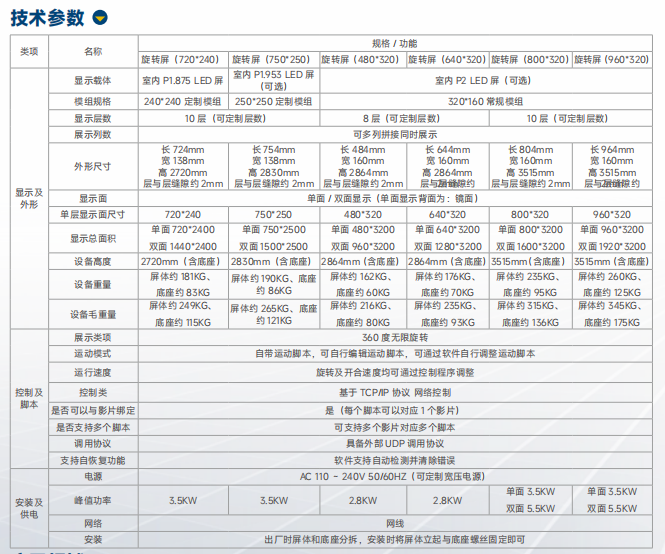

技术参数表 (Technical Specifications)
| 类项 Category | 名称 Name | 旋转屏 (750 * 250) Rotating Screen (750 * 250) | 旋转屏 (480 * 320) Rotating Screen (480 * 320) | 旋转屏 (640 * 320) Rotating Screen (640 * 320) | 旋转屏 (800 * 320) Rotating Screen (800 * 320) | 旋转屏 (960 * 320) Rotating Screen (960 * 320) |
|---|---|---|---|---|---|---|
| 显示及外形Display & Exterior | 显示载体 Display Carrier | 室内P1.953 LED屏（可选）Indoor P1.953 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) | 室内P2 LED屏（可选）Indoor P2 LED Screen (Optional) |
| 模组规格 Module Specifications | 250 * 250 定制模组250 * 250 Custom Module | 320 * 160 常规模组320 * 160 Standard Module | 320 * 160 常规模组320 * 160 Standard Module | 320 * 160 常规模组320 * 160 Standard Module | 320 * 160 常规模组320 * 160 Standard Module | |
| 显示层数 Display Layers | 10层（可定制层数）10 Layers (Customizable) | 8层（可定制层数）8 Layers (Customizable) | 8层（可定制层数）8 Layers (Customizable) | 10层（可定制层数）10 Layers (Customizable) | 10层（可定制层数）10 Layers (Customizable) | |
| 展示列数 Display Columns | 可多列拼接同时展示Support multi-column splicing for simultaneous display | 可多列拼接同时展示Support multi-column splicing for simultaneous display | 可多列拼接同时展示Support multi-column splicing for simultaneous display | 可多列拼接同时展示Support multi-column splicing for simultaneous display | 可多列拼接同时展示Support multi-column splicing for simultaneous display | |
| 外形尺寸 Exterior Dimensions | 长 754mm宽 138mm高 2830mm层与层缝隙约 2mmL 754mmW 138mmH 2830mmGap between layers ~2mm | 长 484mm宽 160mm高 2864mm层与层缝隙约 2mmL 484mmW 160mmH 2864mmGap between layers ~2mm | 长 644mm宽 160mm高 2864mm层与层缝隙约 2mmL 644mmW 160mmH 2864mmGap between layers ~2mm | 长 804mm宽 160mm高 3515mm层与层缝隙约 2mmL 804mmW 160mmH 3515mmGap between layers ~2mm | 长 964mm宽 160mm高 3515mm层与层缝隙约 2mmL 964mmW 160mmH 3515mmGap between layers ~2mm | |
| 单面/双面显示 Single/Double Sided | 单面/双面显示（单面显示背面为：镜面）Single-sided / Double-sided Display (Back side of single-sided: Mirror surface) | 单面/双面显示（单面显示背面为：镜面）Single-sided / Double-sided Display (Back side of single-sided: Mirror surface) | 单面/双面显示（单面显示背面为：镜面）Single-sided / Double-sided Display (Back side of single-sided: Mirror surface) | 单面/双面显示（单面显示背面为：镜面）Single-sided / Double-sided Display (Back side of single-sided: Mirror surface) | 单面/双面显示（单面显示背面为：镜面）Single-sided / Double-sided Display (Back side of single-sided: Mirror surface) | |
| 单层显示面尺寸 Single Layer Size | 750 * 250 | 480 * 320 | 640 * 320 | 800 * 320 | 960 * 320 | |
| 显示总面积 Total Display Area | 单面 750 * 2500双面 1500 * 2500Single-sided: 750 * 2500Double-sided: 1500 * 2500 | 单面 480 * 2560双面 960 * 2560Single-sided: 480 * 2560Double-sided: 960 * 2560 | 单面 640 * 2560双面 1280 * 2560Single-sided: 640 * 2560Double-sided: 1280 * 2560 | 单面 800 * 3200双面 1600 * 3200Single-sided: 800 * 3200Double-sided: 1600 * 3200 | 单面 960 * 3200双面 1920 * 3200Single-sided: 960 * 3200Double-sided: 1920 * 3200 | |
| 设备高度 Equipment Height | 2830mm（含底座）2830mm (Including base) | 2864mm（含底座）2864mm (Including base) | 2864mm（含底座）2864mm (Including base) | 3515mm（含底座）3515mm (Including base) | 3515mm（含底座）3515mm (Including base) | |
| 设备净重 Net Weight | 屏体约 190KG、底座约 86KGScreen: ~190KG, Base: ~86KG | 屏体约 162KG、底座约 60KGScreen: ~162KG, Base: ~60KG | 屏体约 176KG、底座约 70KGScreen: ~176KG, Base: ~70KG | 屏体约 235KG、底座约 95KGScreen: ~235KG, Base: ~95KG | 屏体约 260KG、底座约 125KGScreen: ~260KG, Base: ~125KG | |
| 设备毛重 Gross Weight | 屏体约 265KG、底座约 121KGScreen: ~265KG, Base: ~121KG | 屏体约 216KG、底座约 80KGScreen: ~216KG, Base: ~80KG | 屏体约 235KG、底座约 93KGScreen: ~235KG, Base: ~93KG | 屏体约 315KG、底座约 136KGScreen: ~315KG, Base: ~136KG | 屏体约 345KG、底座约 175KGScreen: ~345KG, Base: ~175KG | |
| 控制及脚本Control & Script | 360度无限旋转 360° Rotation | 360度无限旋转360° Infinite Rotation | ||||
| 运动模式 Motion Mode | 自带运动脚本，可自行编辑，可通过软件自行调整运动脚本Built-in motion scripts, editable. Can adjust motion scripts via software. | |||||
| 运行速度 Operating Speed | 旋转及开合速度均可通过控制程序调整Rotation and opening/closing speeds adjustable via control program. | |||||
| 控制类项 Control Category | 基于TCP/IP协议网络控制Network control based on TCP/IP protocol | |||||
| 影片绑定 Video Binding | 是（每个脚本可以对应1个影片）Yes (Each script can correspond to 1 video) | |||||
| 多脚本支持 Multiple Scripts | 可支持多个影片对应多个脚本Supports multiple videos corresponding to multiple scripts | |||||
| 调用协议 Calling Protocol | 具备外部UDP调用协议Equipped with external UDP calling protocol | |||||
| 自恢复功能 Self-recovery | 软件支持自动检测并清除错误Software supports automatic error detection and clearing | |||||
| 安装及供电Installation & Power Supply | 电源 Power Supply | AC 110 ~ 240V 50/60HZ（可定制宽压电源）AC 110 ~ 240V 50/60HZ (Wide voltage power supply customizable) | ||||
| 峰值功率 Peak Power | 3.5KW | 2.8KW | 2.8KW | 单面 3.5KWSingle-sided: 3.5KW双面 5.5KWDouble-sided: 5.5KW | 单面 3.5KWSingle-sided: 3.5KW双面 5.5KWDouble-sided: 5.5KW | |
| 网络 Network | 网线Ethernet Cable | |||||
| 安装 Installation | 出厂时屏体和底座分拆，安装时将屏体立起与底座螺丝固定即可Screen body and base are disassembled upon factory shipment. Installation involves erecting the screen body and fixing it to the base with screws. |
