The first domestic smart dynamic screen series product - the opening and closing rotating screen, is a display carrier composed of multiple left and right sliding rail display screens in the same column
Modular design, each module is composed of multiple sliding display units, easy installation, simple maintenance can be removed and replaced by the whole module, can also be removed and replaced by a single unit. Display carrier is not limited, can be combined with LED screen, LCD splicing screen, LCD display, projector and other display carrier diversified creativity;

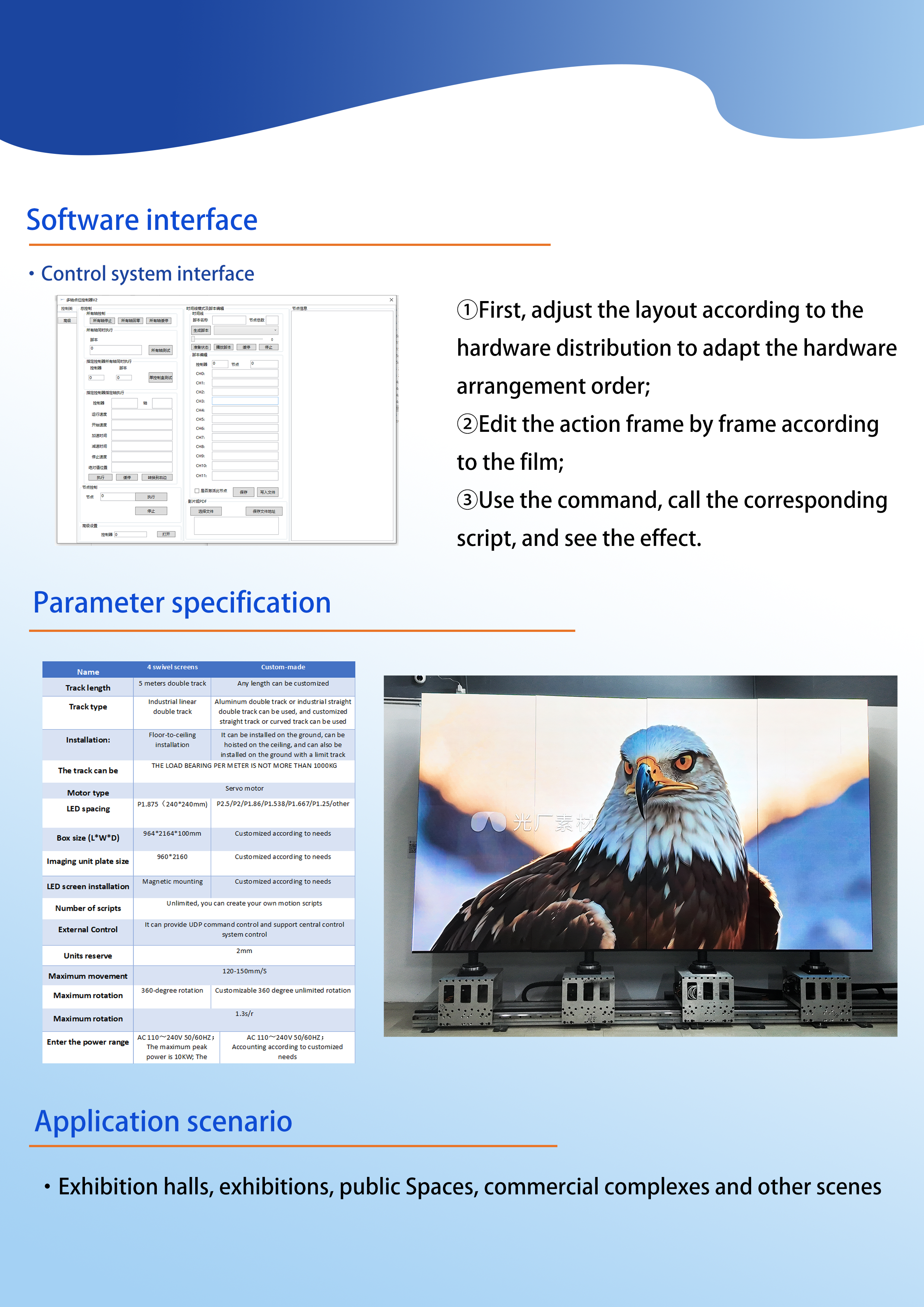

Visual scripts can be realized, and predetermined scripts can be automatically generated according to the movie. Script editing is simple and convenient, and zero learning threshold;
Use multiple anti-collision safety protection to improve the stability of the equipment and ensure the safety of the display screen. Self-developed transmission system with low noise and high stability effectively reduces the noise generated by transmission, while improving stability and operation accuracy.
Different model sizes, light structure and heavy structure can be selected: Support custom acceleration and deceleration speed, acceleration and deceleration time, reduce the impact on the device itself and make the movement softer.

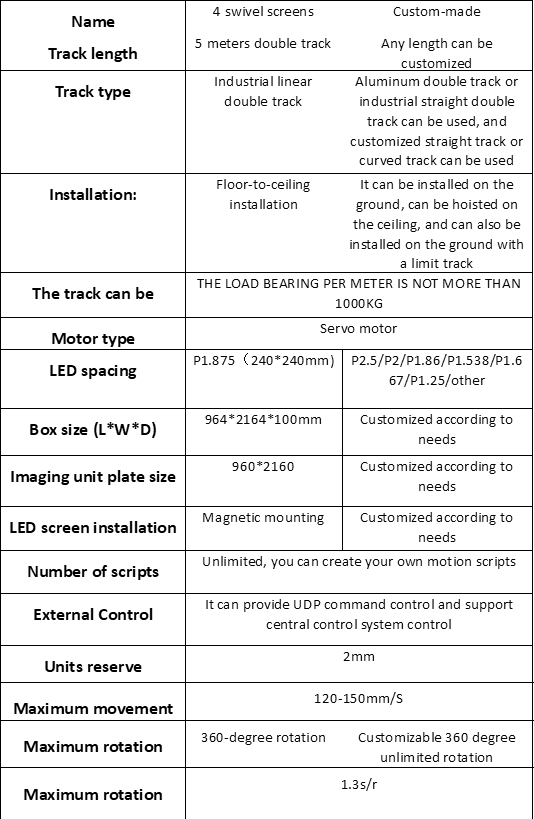

Technical Parameters:
Name: 4-Piece Folding Rotating Screen | Custom Model
Track Length: 5-meter Dual Track | Customizable to Any Length
Track Type: Industrial Linear Dual Track | Aluminum Dual Track or Industrial Linear Dual Track Available, Custom Linear or Arc Track Available
Installation Method: Floor Mounting | Floor Mounting/Ceiling Suspension Available, Limit Track Can Be Added on Ground
Track Load Capacity: ≤1000KG per Meter
Motor Type: Servo Motor
LED Pixel Pitch: P1.875 (240 * 240mm) | P2.5/P2/P1.5/P1.875/P1.667/P1.25/Other Options
Cabinet Dimensions: 964 * 2164 * 100mm | Customizable per Requirements
(Length·Width·Thickness)
Imaging Unit Size: 960 * 2160 | Customizable per Requirements
LED Screen Installation: Magnetic Installation | Customizable per Requirements
Number of Scripts: Unlimited, Motion Scripts Can Be Created Independently
External Control Protocol: UDP Command Control Supported, Central Control System Compatible
Unit Reserved Gap: 2mm
Maximum Moving Speed: 120-150mm/s
Maximum Rotation Angle: 360° Rotation | Customizable 360° Infinite Rotation
Maximum Rotation Speed: 1.3s/r
Input Power Range: AC 110-240V 50/60Hz; AC 110-240V 50/60Hz;
Maximum Peak Power: 10KW | Calculated Based on Custom Requirements
Routine Operating Power: 5.5KW
